مكان المنشأ:
صنع في الصين
اسم العلامة التجارية:
Belparts
رقم الموديل:
R220LC-9 JMV147

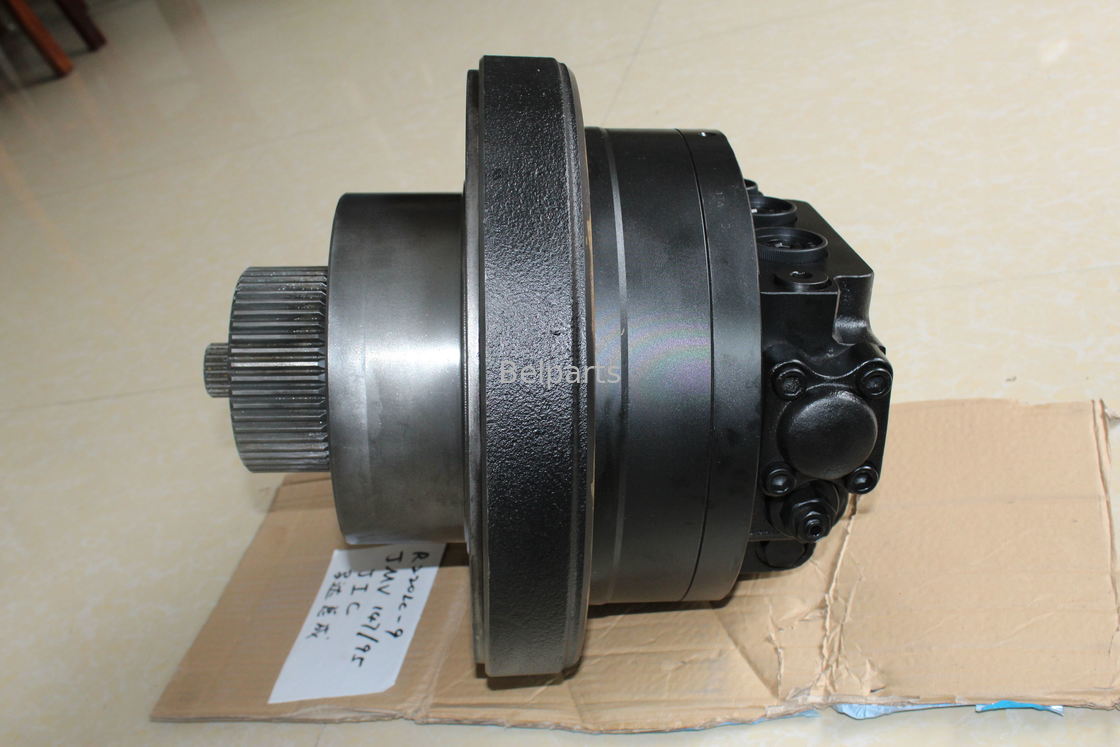

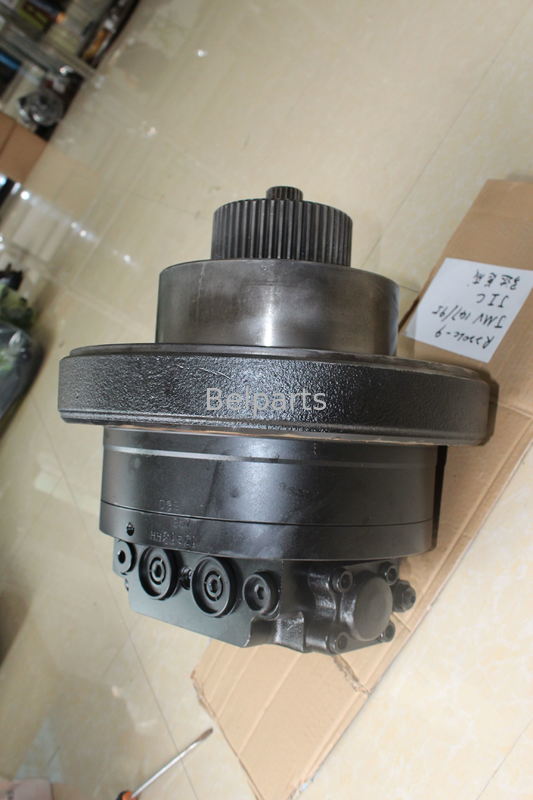

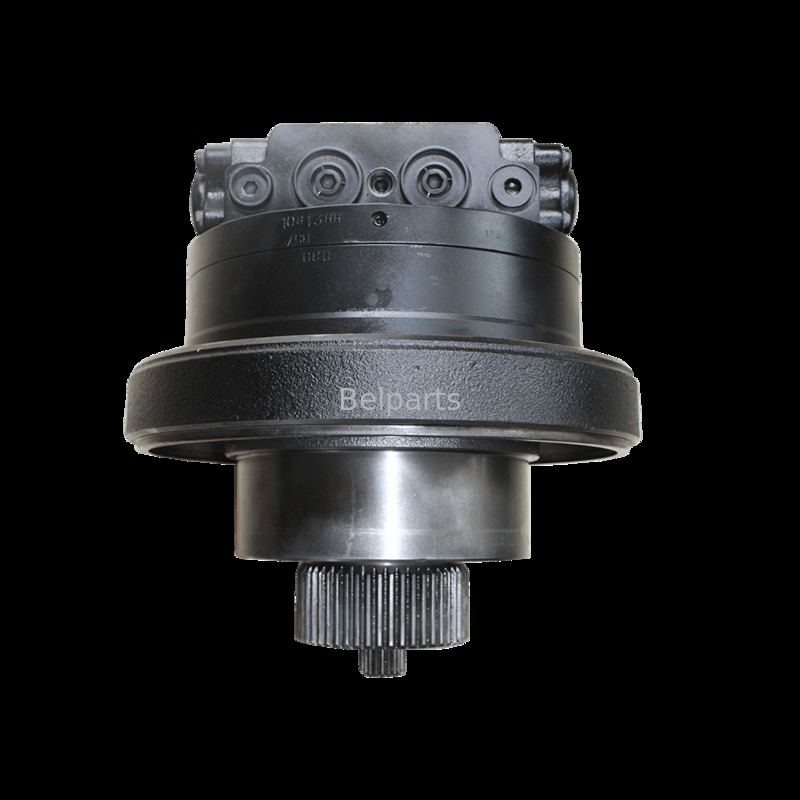

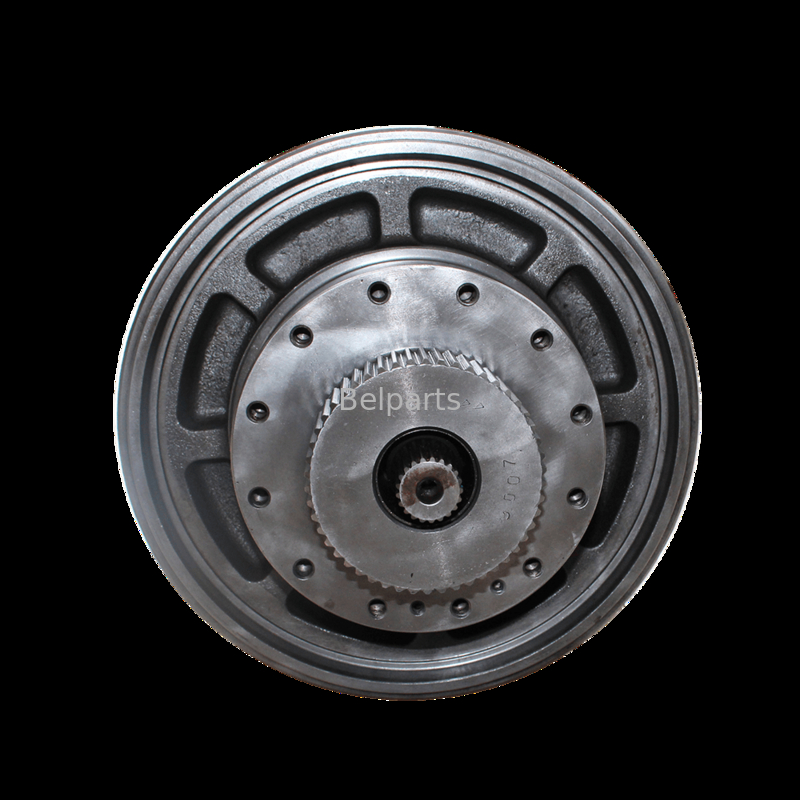

| Model | R220LC-9 JMV147 final drive |
| Part Name | Excavator Travel Motor |
| Part Number | 31N6-10051 |
| Place of Origin | Other Country |
| Condition | OEM/ Genuine/Used |
| Warranty | 12 months |
| MOQ | 1 pcs |
| Production Capacity | 1000pcs /Month |
| Standard or Nonstandard | Standard |
| Payment Term | L/C, T/T, Trade Assurance |
| Delivery Time | 1-3 days (depend on order) |
| Means of Transport | By Sea, Air or DHL |
| Guarantee | We will check and send detailed pictures to buyers for confirmation |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 2 | 11N6-12000 | HOUSING | 1 | |
| 3 | 11N7-10010 | COUPLING ASSY | 1 | |
| 3-1 | 11N7-10020 | ELEMENT | 1 | |
| 3-2 | 11N7-10030 | HUB-SPLINE | 1 | |
| 3-3 | 11N7-10040 | INSERT A | 4 | |
| 3-4 | 11N7-10050 | INSERT R | 4 | |
| 3-5 | S109-18060D | BOLT-SOCKET | 4 | |
| 3-6 | S109-18055D | BOLT-SOCKET | 4 | |
| 3-7 | 11N7-10060 | SCREW-CLAMP | 2 | |
| 3-8 | S472-500102 | PIN-SPRING | 12 | |
| 4 | S109-20050D | BOLT-SOCKET | 4 | |
| 5 | S017-100356 | BOLT-HEX | 8 | |
| 6 | S403-10200B | WASHER-PLAIN | 12 | |
| 7 | S017-100406 | BOLT-HEX | 4 |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31N6-10051 | MAIN PUMP ASSY *-1,2,3,4 |
1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-00077 | DRIVE SHAFT(F) | 1 | |
| 113 | XJBN-00078 | DRIVE SHAFT(R) | 1 | |
| 114 | XJBN-00351 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00950 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00080 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00081 | SPACER-BEARING | 4 | |
| S141 | XJBN-00067 | BLOCK-CYLINDER | 2 | |
| S151 | XJBN-00061 | PISTON | 18 | |
| S152 | XJBN-00062 | SHOE | 18 | |
| NK153 | XJBN-00082 | PLATE-SET | 2 | |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00085 | PLATE-SHOE | 2 | |
| S212 | XJBN-00070 | PLATE-SWASH | 2 | |
| S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00086 | SUPPORT | 2 | |
| 261 | XJBN-00087 | COVER(F)-SEAL | 1 | |
| 271 | XJBN-00088 | CASING-PUMP | 2 | |
| 312 | XJBN-00089 | BLOCK-VALVE | 1 | |
| S313 | XJBN-00065 | PLATE-VALVE(R) | 1 | |
| S314 | XJBN-00068 | PLATE-VALVE(L) | 1 | |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 18 | |
| S531 | XJBN-00358 | PIN-TILTING | 2 | |
| 532 | XJBN-00091 | PISTON-SERVO | 2 | |
| 534 | XJBN-00092 | STOPPER(L) | 2 | |
| 535 | XJBN-00093 | STOPPER(S) | 2 | |
| S541 | XJBN-00859 | SEAT | 4 | |
| S543 | XJBN-00860 | STOPPER | 2 | |
| S544 | XJBN-00861 | STOPPER | 2 | |
| S545 | XJBN-00359 | BALL-STEEL | 4 | |
| S548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| K702 | XJBN-00918 | O-RING | 2 | |
| K710 | XJBN-00095 | O-RING | 1 | |
| K717 | XJBN-00096 | O-RING | 4 | |
| K724 | XJBN-00361 | O-RING | 16 | |
| K725 | XJBN-00362 | O-RING | 4 | |
| K728 | XJBN-00363 | O-RING | 4 | |
| K732 | XJBN-00912 | O-RING | 2 |
