مكان المنشأ:
صنع في الصين
اسم العلامة التجارية:
Belparts
رقم الموديل:
Ex200-2
| Model | HMGF033CA EX200-2 |
| Part Name | Excavator Travel Motor |
| Part Number | 9101523 2026713 |
| Place of Origin | China/ Other Country |
| Condition | OEM/ Genuine/Used |
| Warranty | 12 months |
| Standard or Nonstandard | Standard |
| Payment Term | L/C, T/T, Trade Assurance |
| Delivery Time | 1-3 days (depend on order) |
| Means of Transport | By Sea, Air or DHL |
| Guarantee | We will check and send detailed pictures to buyers for confirmation |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9101523 | MOTOR; OIL | 1 | ||
| 01 | 1014547 | . HOUSING | 1 | |
| 04 | 2026713 | . DISC; DRIVING | 1 | |
| 06 | 4198783 | . BRG; ROL | 1 | |
| 07 | 4198998 | . BRG.; ROL. | 1 | |
| 08 | 4222980 | . SPACER | 1 | |
| 09 | 4178173 | . NUT; BRG. | 1 | |
| 11 | 4260561 | . SEAL; OIL | 1 | |
| 12 | 4116290 | . RING; RETAINING | 1 | |
| 14 | 2032256 | . ROTOR | 1 | |
| 17 | 8050658 | . PISTON | 7 | |
| 19 | 4262045 | . SHAFT; CENTER | 1 | |
| 20 | 4246613 | . SPRING; COMPRES. | 1 | |
| 21 | 4198956 | . PIN | 1 | |
| 22 | 4234229 | . RING; RETAINING | 1 | |
| 24 | 3037401 | . PLATE; FRICTION | 4 | |
| 25 | 3032432 | . PLATE | 5 | |
| 26 | 4246784 | . SPACER | 1 | |
| 28 | 3047473 | . PISTON | 1 | |
| 29 | 4232766 | . D-RING | 1 | |
| 30 | 4232767 | . D-RING | 1 | |
| 31 | 3047472 | . SPRING; DISC | 1 | |
| 33 | 4248871 | . O-RING | 1 | |
| 34 | 4506415 | . O-RING | 1 | |
| 37 | 9101524 | . VALVE; BRAKE | 1 | |
| 38 | M341650 | . BOLT; SOCKET | 8 | |
| 40 | 3050071 | . PLATE | 1 | |
| 41 | 4266256 | . PIN; KNOCK | 2 | |
| 45 | 1016649 | . VALVE | 1 | |
| 46 | 4234628 | . BUSHING | 1 | |
| 48 | 3052403 | . LINK | 1 | |
| 49 | 4255238 | . PLUG | 2 | |
| 51 | 4262561 | . BOLT; REAMER | 1 | |
| 54 | 9101386 | . PISTON; SERVO | 1 | |
| 55 | 4260308 | . RING; PISTON | 2 | |
| 56 | 4275286 | . COVER | 1 | |
| 57 | 4265579 | . O-RING | 1 | |
| 58 | M341225 | . BOLT; SOCKET | 4 | |
| 60 | 9089487 | . PLUG | 1 | |
| 60A | 4506418 | .. O-RING | 1 | |
| 62 | 9089484 | . PLUG | 2 | |
| 62A | 4506408 | .. O-RING | 1 |

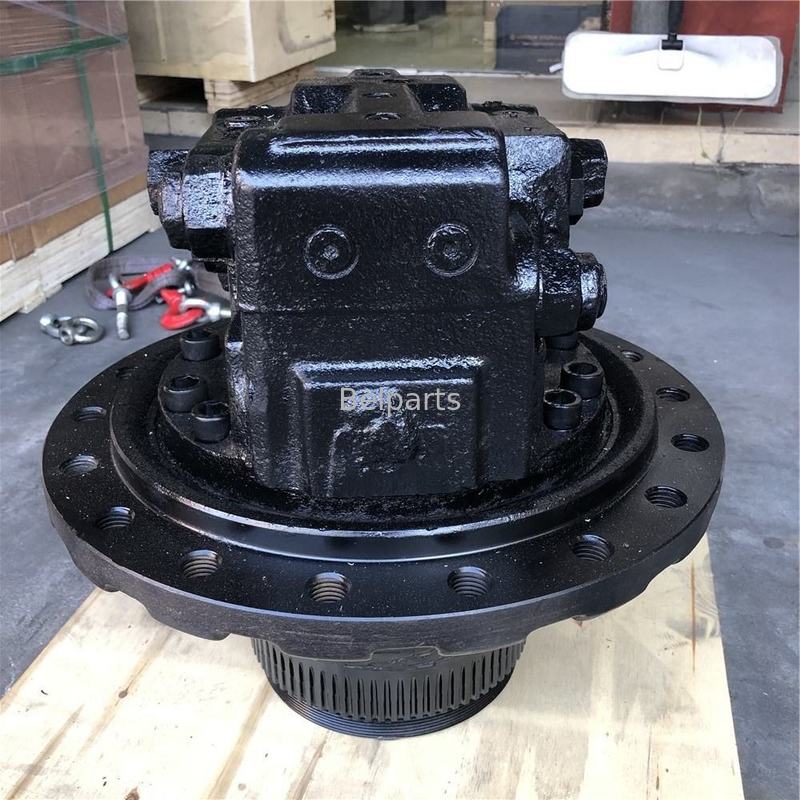

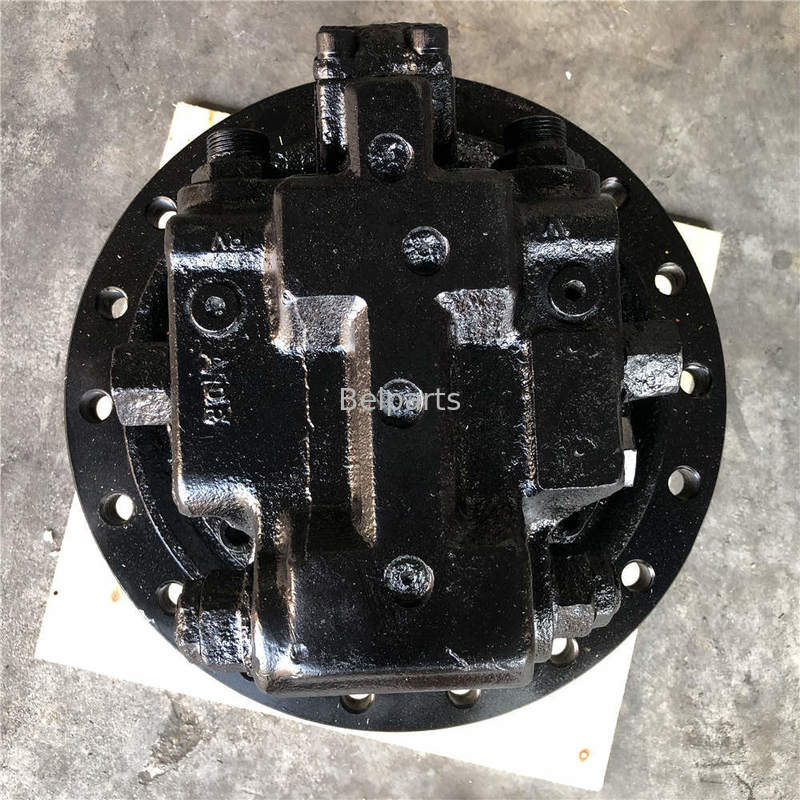

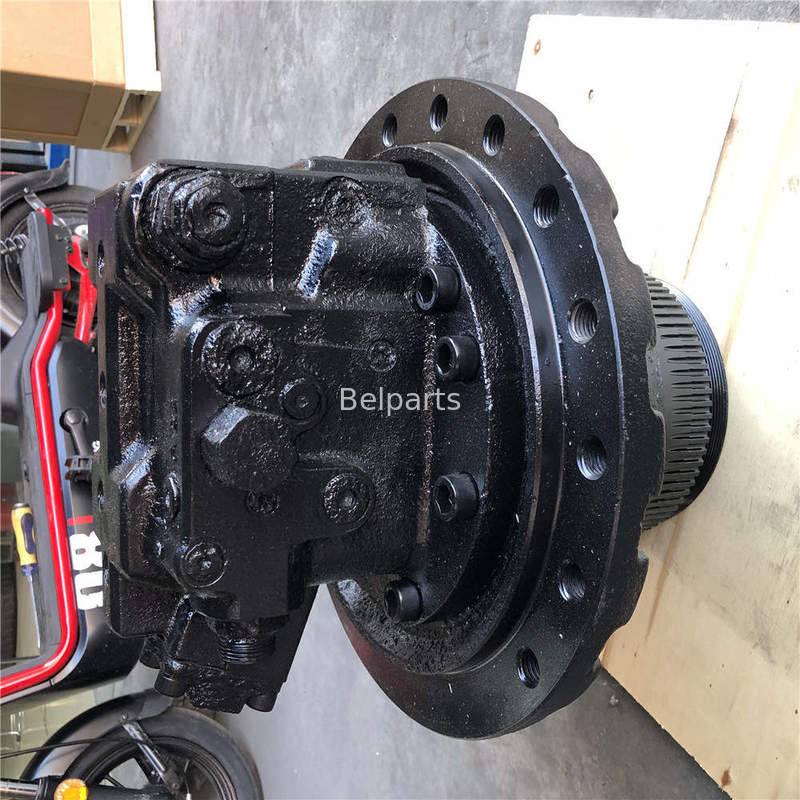

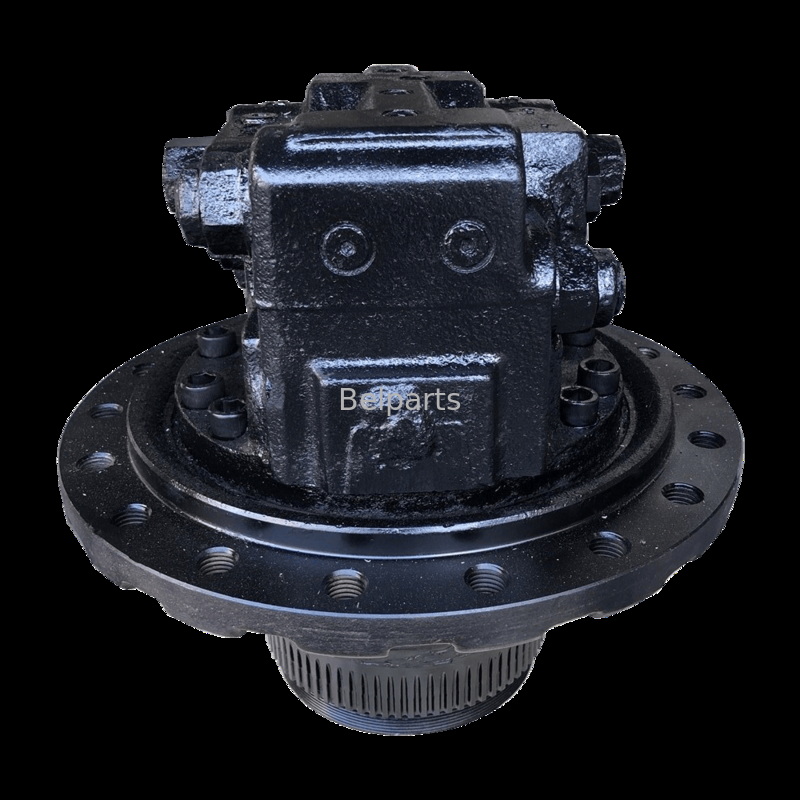

The excavator travel motor is a hydraulic-driven component that converts hydraulic energy into mechanical rotation. High-pressure oil from the pump enters the motor, actuating pistons or gears to generate torque. A built-in reduction gear (often planetary) increases output force while reducing speed, driving the sprocket and tracks.
Key features include:
Bi-directional operation (forward/reverse via hydraulic flow control)
Integrated brakes for slope stability
Multi-speed control (some models)
Maintenance focuses on seal integrity, bearing wear, and hydraulic fluid cleanliness to prevent leaks and ensure efficiency. These motors provide high torque for rough terrain while enabling precise movement.
