مكان المنشأ:
المكان الأصلي
اسم العلامة التجارية:
Belparts
إصدار الشهادات:
CE
رقم الموديل:
KX91-3 KX91-3S KX91-3S2

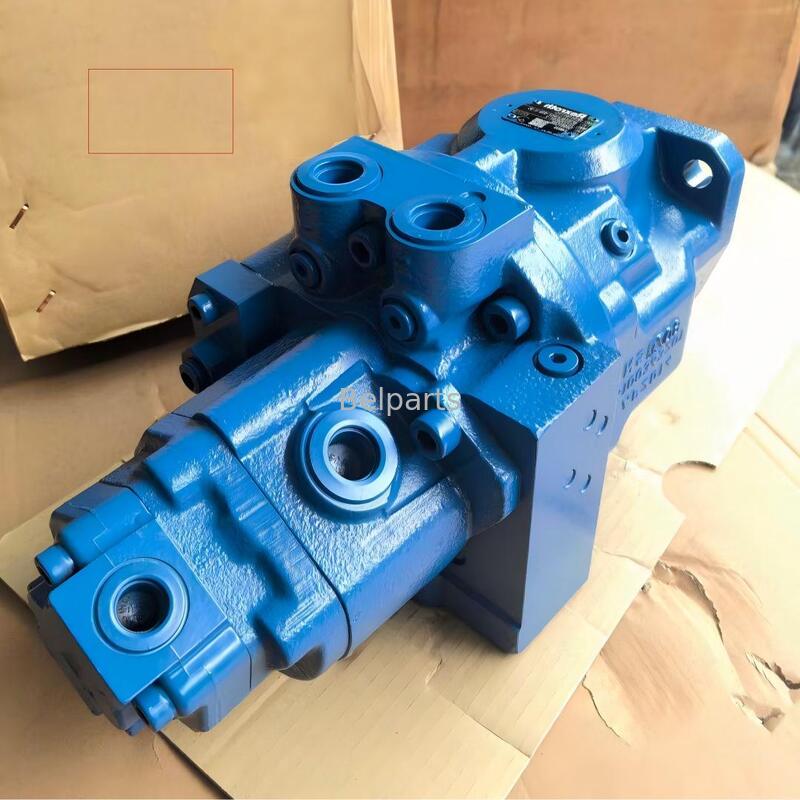

| التطبيق | حفارة |
| اسم الجزء | مضخة مكبس هيدروليكية |
| الموديل | KX91-3 KX91-3S KX91-3S2 |
| النوع | AP2D18 |
| رقم الجزء | RC411-61115 RC411-61112 |
| الضمان | 12 شهرًا |
| وقت التسليم | 3-7 أيام |
| الشحن | سريع/شحن/بحر/قطار |
| الجودة | علامة تجارية جديدة أصلية |
| الحد الأدنى لكمية الطلب | 1 قطعة |
| مدة الدفع | T/T, ضمان التجارة, PayPal وما إلى ذلك |
| الفئة | جزء آلات البناء |
| # | رقم الجزء | الوصف | الكمية |
|---|---|---|---|
| 010 | RC411-61115 | ASSY PUMP PISTON; Serial No. >=21201; Replacement | 1 |
| 010 | RC411-61112 | ASSY PUMP,PISTON; Serial No. <=21200 | 1 |
| 020 | RC411-76312 | ASSY SAHFT; Serial No. >=21201; Replacement | 1 |
| 020 | RC411-76310 | ASSY SHAFT; Serial No. <=21200 | 1 |
| 030 | RC411-79010 | SHAFT | 1 |
| 040 | RP421-79020 | CASE,SEAL; Serial No. <=21200 | 1 |
| 040 | RP421-79022 | CASE, SEAL; Serial No. >=21201; Replacement | 1 |
| 050 | RP421-79030 | BEARING | 1 |
| 060 | 04612-00250 | CIR-CLIP EXTERNAL | 2 |
| 070 | RP421-79040 | O RING; Serial No. <=21200 | 1 |
| 070 | RP421-79042 | O-RING; Serial No. >=21201; Replacement | 1 |
| 080 | 04611-00360 | CIR-CLIP, INTERNAL | 1 |
| 100 | RP421-76320 | ASSY HOUSING | 1 |
| 110 | RP421-79060 | HANGER | 1 |
| 120 | RP421-79070 | COVER | 1 |
| 130 | 01311-10616 | SCREW,HEX SOC CAP | 4 |
| 140 | 04811-50550 | VOLUTE CASING O'RING | 1 |
| 150 | RP421-76330 | ASSY ROTARY | 1 |
| 160 | RC411-76340 | ASSY COVER; Serial No. <=21200 | 1 |
| 160 | RC411-76342 | ASSY COVER; Serial No. >=21201; Replacement | 1 |
| 170 | RC411-79080 | COVER | 1 |
| 180 | RP421-79090 | PLATE, CONTROL | 1 |
| 190 | 01311-11030 | SCREW,HEX SOC CAP | 3 |
| 195 | RC441-79100 | ORIFICE; Serial No. >=20436 | 3 |
| 200 | RP421-79100 | PLUG | 3 |
| 205 | 04817-00080 | O RING; Serial No. <=21200 | 1 |
| 205 | RC441-79450 | O-RING; Serial No. >=21201; Not Interchangeable | 1 |
| 210 | RP421-79110 | GASKET | 1 |
| 220 | 01311-11050 | SCREW,HEX SOC CAP | 1 |
| 230 | 01311-11055 | SCREW,HEX SOC CAP | 1 |
| 240 | RC411-76350 | ASSY SPRING | 1 |
| 250 | RP421-79130 | SEAT, SPRING | 1 |
| 260 | RC411-79140 | SEAT, SPRING | 1 |
| 270 | RC411-79150 | COVER; Serial No. <=20435 | 1 |
| 270 | RC441-79150 | COVER; Serial No. >=20436; Not Interchangeable | 1 |
| 280 | RP421-79160 | SCREW, ADJUST | 1 |
| 290 | RC411-79170 | SPRING | 1 |
| 300 | RP421-79180 | SPRING | 1 |
| 310 | 04816-00300 | O RING | 1 |
| 320 | 01311-10830 | SCREW,HEX SOC CAP | 2 |
| 330 | RP421-79190 | NUT | 1 |
| 340 | RP421-79220 | SHIM; 1.00mm | 1 |
| 340 | RP421-79200 | SHIM; 0.30mm | 1 |
| 340 | RP421-79210 | SHIM; 0.50mm | 1 |
| 350 | RC411-76360 | ASSY PISTON | 1 |
| 360 | RC411-79230 | CYLINDER | 1 |
| 370 | RC411-79240 | PISTON | 1 |
| 380 | RP421-79250 | PIN, STRAIGHT | 2 |
| 390 | RC411-79260 | PIN, STRAIGHT | 1 |
| 400 | 01311-10825 | SCREW,HEX SOC CAP | 2 |
| 410 | RP421-79270 | O-RING | 1 |
| 420 | RP421-79280 | O-RING | 1 |
| 430 | RP421-79290 | O-RING | 1 |
| 440 | RP421-79300 | SPRING, PLATE | 4 |
| 450 | RP421-79310 | SEAT SPRING | 1 |
| 455 | RC411-76372 | ASSY PUMP,GEAR; Serial No. <=21200 | 1 |
| 455 | RC411-76375 | ASSY PUMP GEAR; Serial No. >=21201; Replacement | 1 |
| 460 | RC411-79322 | ASSY PUMP,GEAR; Serial No. <=20435 | 1 |
| 460 | RC411-79323 | ASSY PUMP, GEAR; Serial No. >=20436; Not Interchangeable | 1 |
| 470 | RC411-79330 | FRAME; Serial No. <=20435 | 1 |
| 480 | RC411-79340 | HOUSING; Serial No. <=20435 | 1 |
| 480 | RC441-79330 | HOUSING; Serial No. >=20436; Not Interchangeable | 1 |
| 490 | RP421-79390 | PLATE; Serial No. <=20435 | 1 |
| 500 | RP421-79400 | GUIDE; Serial No. <=20435 | 2 |
| 510 | RC411-79410 | COUPLING | 1 |
| 520 | RC411-79420 | BUSH | 1 |
| 530 | RP421-79430 | O-RING | 2 |
| 540 | 04817-00100 | O RING; Serial No. <=20435 | 3 |
| 540 | RC441-79430 | O RING; Serial No. >=20436 | 1 |
| 550 | RP421-79440 | SQUARE, RING; Serial No. <=20435 | 2 |
| 550 | RP421-79440 | SQUARE, RING; Serial No. >=20436 | 1 |
| 560 | RP421-79450 | SQUARE RING | 2 |
| 570 | RC411-79460 | HEX.BOLT; Serial No. <=20435 | 4 |
| 570 | 01311-11075 | SCREW,HEX SOC CAP; Serial No. >=20436; Not Interchangeable | 4 |
| 580 | 01311-11025 | SCREW,HEX SOC CAP | 2 |
| 590 | RC411-79470 | PIN, STRAIGHT; Serial No. <=20435 | 4 |
| 590 | RC411-79470 | PIN, STRAIGHT; Serial No. >=20436 | 2 |
| 600 | RC411-79480 | O-RING | 1 |
| 610 | RC411-79490 | O RING; Serial No. <=20435 | 2 |
| 610 | RC411-79492 | O-RING; Serial No. >=20436 | 1 |
| 620 | RC411-79500 | O RING; Serial No. <=21200 | 1 |
| 620 | RC411-79502 | O-RING; Serial No. >=21201; Replacement | 1 |
| 630 | RC411-79510 | ASSY PLUG; Serial No. <=20435 | 1 |
| 630 | 04817-00100 | O RING; Serial No. >=20436; Not Interchangeable | 1 |
| 640 | RP421-76420 | VALVE; Serial No. <=20435 | 1 |
| 640 | RC411-76430 | PLUG; Serial No. >=20436; Interchangeable | 1 |
