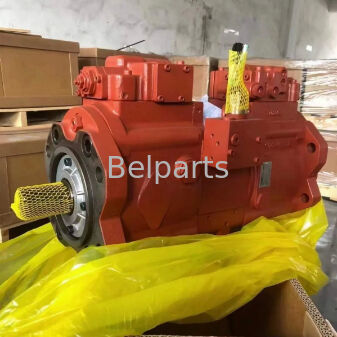

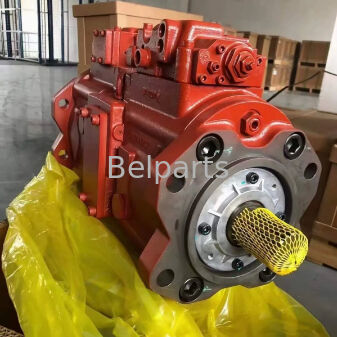

Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9

Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9

Hyundai excavator hydraulic pump,Robex 330LC-9 piston pump,K3V180DTP excavator main pump

Robex 330LC-9 piston pump

K3V180DTP excavator main pump

مكان المنشأ:

الصين

اسم العلامة التجارية:

Belparts

إصدار الشهادات:

CE

رقم الموديل:

R330LC-9 R330LC-9S R335LC-9 R330LC-9A R335LC-9T

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
نموذج:
R330LC-9 R330LC-9S R335LC-9 R330LC-9A R335LC-9T
يكتب:
K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9
اسم الجزء:
المضخة الهيدروليكية الرئيسية
رقم الجزء:
VOE14531412 VOE14500380 VOE14516492 VOE14512271 VOE14520050
طلب:
حفارة زاحفة
جودة:
صنع في الصين OEM
ضمان:
12 شهرا
شحنة:
البحر/الجو/اكسبرس DHL FEDEX UPS
شروط الدفع والشحن
الحد الأدنى لكمية
1 قطعة
الأسعار
قابل للتفاوض
تفاصيل التغليف
تعبئة حالة خشبية
وقت التسليم
3-7 يوم
شروط الدفع
L / C، D / A، D / P، T / T، ضمان التجارة علي بابا، ويسترن يونيون، باي بال
القدرة على العرض
100 قطعة/أشهر
وصف المنتج
Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Excavator Spare Part 31Q9-10030 31Q9-10080 Main Piston Pump Attachment K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9
Product Specifications
Application Excavator
Part name Hydraulic Main pump
Machine model

Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9

R330LC-9A R335LC-9T

Type  K3V180DTP-9N29-17T   K3V180DT-1RAR-9NJ9   K5V160DT-1RAR-9NH9
Part number


31Q9-10030 31Q9-10080


Warranty 12 months
Delivery time 3-7 Days
Shipment Express/freight/sea/train
Quality Made in China OEM
MOQ 1 Piece
Payment term T/T, Trade Assurance, Paypal and et


Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9 0

Pos.    Part No    Qty    Parts name
*    31Q9-10030    [1]    MAIN PUMP
*    31Q9-10080    [1]    MAIN PUMP
111.    XJBN-00015    [1]    SHAFT-DRIVE(F)
113.    XJBN-00153    [1]    SHAFT-DRIVE(R)
114.    XJBN-00367    [1]    COUPLING-SPLINE
123.    XJBN-00571    [2]    BEARING-ROLLER
124.    XJBN-00018    [2]    BEARING-NEEDLE
127.    XJBN-00569    [3]    SPACER-BEARING
NS012.    XJBN-00680    [2]    BLOCK-CYLINDER
NS141.    XJBN-01933    [2]    BLOCK-CYLINDER
NS151.    XJBN-00681    [18]    PISTON
NS151.    XJBN-01932    [18]    PISTON
NS152.    XJBN-01385    [18]    SHOE
NS152.    XJBN-01931    [18]    SHOE
153.    XJBN-00020    [2]    PLATE-SET
153.    XJBN-00683    [2]    PLATE-SET
156.    XJBN-00564    [2]    BUSHING-SPHERICAL
157.    XJBN-00541    [18]    SPRING-CYLINDER
211.    XJBN-00023    [2]    PLATE-SHOE
NS212.    XJBN-00012    [2]    PLATE-SWASH
NS214.    XJBN-00013    [2]    BUSHING-TILTING
251.    XJBN-00550    [2]    SUPPORT-S.P.
261.    XJBN-00025    [1]    COVER(FR)-SEAL
271.    XJBN-01386    [2]    CASING-PUMP
312.    XJBN-00027    [1]    BLOCK-VALVE
NS313.    XJBN-01387    [1]    PLATE(R)-VALVE
NS313.    XJBN-01930    [1]    PLATE(R)-VALVE
NS314.    XJBN-01388    [1]    PLATE(L)-VALVE
NS314.    XJBN-01929    [1]    PLATE(L)-VALVE
401.    XJBN-00028    [8]    SCREW
406.    XJBN-00355    [4]    SCREW-HEX SOC HD
466.    XJBN-00356    [2]    PLUG-VP
468.    OVP34    [4]    PLUG
490.    XJBN-00032    [30]    PLUG
NS531.    XJBN-00369    [2]    PIN-TILTING
NS531.    XJBN-00981    [2]    PIN-TILTING
532.    XJBN-00033    [2]    PISTON-SERVO
532.    XJBN-00703    [2]    PISTON-SERVO
534.    XJBN-00034    [2]    STOPPER(L)
535.    XJBN-00035    [2]    STOPPER(S)
NS541.    XJBN-00859    [4]    SEAT
NS543.    XJBN-00860    [2]    STOPPER 1
NS544.    XJBN-01002    [2]    STOPPER(2)
NS545.    XJBN-00359    [4]    BALL-STEEL
NS548.    XJBN-00360    [2]    PIN-FEED BACK
702.    OORBG40W    [2]    O-RING
710.    OORBG105    [1]    O-RING
717.    XJBN-00042    [2]    O-RING
719.    XJBN-00043    [2]    O-RING
724.    OORBPB    [16]    O-RING
725.    XJBN-00362    [8]    O-RING
728.    XJBN-00363    [4]    O-RING
732.    OORBP21W    [2]    O-RING
774.    XJBN-01595    [1]    SEAL-OIL
789.    XJBN-00049    [2]    RING-BACK UP
792.    XJBN-00050    [2]    RING-BACK UP
808.    XJBN-00364    [4]    NUT-HEX
824.    OSR45    [2]    RING-SNAP
885.    XJBN-00053    [2]    PIN 2
886.    XJBN-00365    [4]    PIN-SPRING
901.    OEBM12    [2]    BOLT-EYE
953.    XJBN-00654    [2]    SCREW-SET
954.    XJBN-00057    [2]    SCREW-SET
981.    XJBN-00158    [1]    NAME PLATE
981.    XJBN-01661    [1]    NAME PLATE
983.    XJBN-00341    [2]    PIN
*-2.    @    [1]    REGULATOR
*-2.    @    [1]    REGULATOR
*-3.    @    [1]    GEAR PUMP
*-4.    @    [1]    EPPR VALVE
S011.    @    [1]    EPPR VALVE
S011.    XJBN-01382    [2]    PISTON ASSY
S011.    XJBN-01937    [2]    PISTON ASSY
S013.    XJBN-00665    [1]    CYLINDER ASSY-RH
S013.    XJBN-01935    [1]    CYLINDER ASSY-RH
S014.    XJBN-00666    [1]    CYLINDER ASSY-LH
S014.    XJBN-01936    [1]    CYLINDER ASSY-LH
S030.    XJBN-00011    [2]    SWASH PLATE ASSY
S041.    XJBN-00072    [2]    CHECK VALVE ASSY 1
S042.    XJBN-01009    [2]    CHECK VALVE ASSY 3
S530.    XJBN-00371    [2]    TILTING PIN SUB ASSY
S530.    XJBN-00986    [2]    TILTING PIN SUB ASSY
N.    @    [AR]    NOT SUPPLIED PARTS
More Branded Accessories
Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9 1
Why Choose Us?
  • Quality Assurance
  • Fine Workmanship
  • Price Advantage
  • Stable Supply
Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9 2 Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9 3
Process Features
  • Standard production management
  • Advanced testing equipment
  • Heat Treatment Technology
  • Fitting of cylinder block and valve plate
Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9 4
About Factory

Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.

Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9 5
FAQ
1. If I only know the excavator model, but can not offer parts No., what should I do?

If possible, you can send us pictures of old products, nameplate or the size for reference.

2. What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?

The warranty is 6/12 Months based on the item details.

3. How can I pay the order?

We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.

4. When will get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.

5. How can I do if there is something wrong with the items?

First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.

6. What is your main products?

We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
