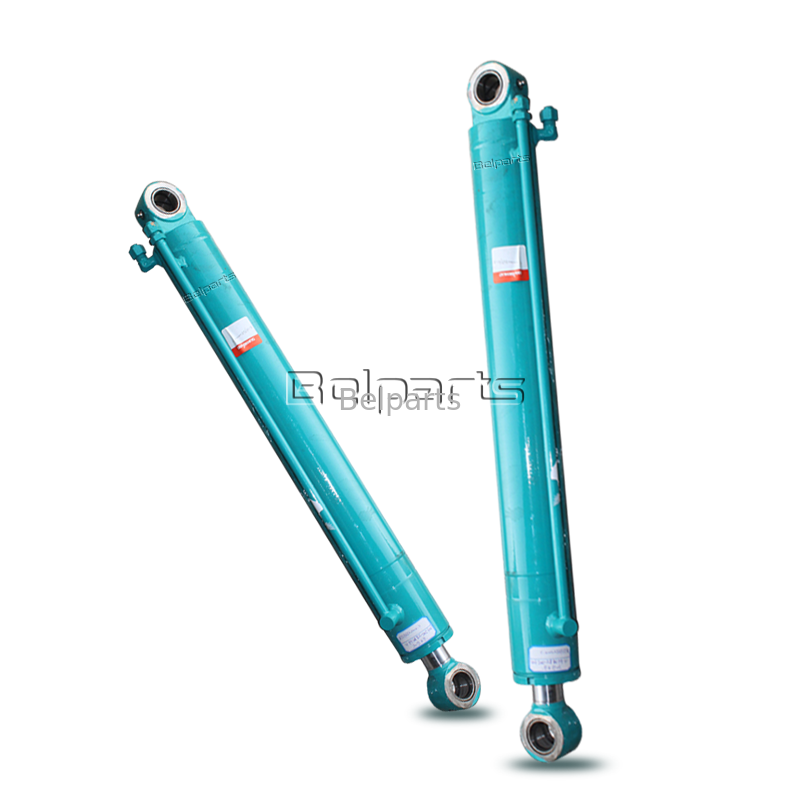

YT01V00043F1 hydraulic boom cylinder is a key component for Kobelco SK75SR-3E excavator. Produced per OEM standards, it matches original sizes and hydraulic parameters for direct installation without modification. It ensures stable lifting performance for general construction, earthmoving and other regular working tasks.
| Parameter | Product & Logistics Details |
|---|---|
| Application | Medium excavator hydraulic system, general construction works |
| Part Name | Hydraulic Boom Cylinder |
| Compatible Model | Kobelco SK75SR-3E |
| Part Number | YT01V00043F1 |
| Quality Grade | High-quality aftermarket |
| Certification | ISO9001, CE certified |
| Warranty | 12-month comprehensive quality warranty |
| Minimum Order Quantity | 1 piece acceptable |
| Delivery Time | 3-7 working days via air express |
| Shipping Options | Express, land transport, sea freight, railway delivery |
| Payment Method | T/T, Trade Assurance, PayPal |
| # | Part No. | Description | Qty |
|---|---|---|---|
| . | YT01V00043F1 | HYDRAULIC CYLINDER; Assembly, Incl 1 - 26 | 1 |
| 1 | ---- | NOT SOLD SEPARAT; Tube Assy | 1 |
| 2 | ---- | NOT SOLD SEPARAT; Rod, Piston | 1 |
| 3 | YT01V00017S003 | CYLINDER HEAD | 1 |
| 4 | YT01V00017S004 | BUSHING | 1 |
| 5 | 2438U721S7 | SNAP RING | 1 |
| 6 | YT01V00017S006 | RING; Back Up | 1 |
| 7 | 2438U721S16 | RING; U | 1 |
| 8 | YT01V00001S009 | RING | 1 |
| 9 | ZD12G10500 | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | 2 |
| 10 | PY01V00036S008 | RING; Back Up | 1 |
| 11 | ZD11G11000 | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | 1 |
| 12 | YT01V00017S012 | HOLDER | 1 |
| 13 | YT01V00017S013 | REPAIR KIT | 2 |
| 14 | YT01V00017S014 | COLLAR | 1 |
| 15 | 2438U1949S12 | RING; Back Up | 1 |
| 16 | YT01V00017S016 | BEARING; Ring | 1 |
| 17 | YT01V00017S017 | PISTON | 1 |
| 18 | 2438U716S23 | SEAL; Ring | 1 |
| 19 | YM01V00019S018 | RING | 2 |
| 20 | YM01V00009S020 | NUT | 1 |
| 21 | 2438U999S21 | SET SCREW | 1 |
| 22 | 2436U330S16 | BALL | 1 |
| 23 | YT01V01001P2 | BUSHING | 2 |
| 24 | 2438U1946S25 | RING | 2 |
| 25 | YT01V01003P2 | BUSHING | 2 |
| 26 | LP01V00007S026 | RING; Wiper | 2 |
| 27 | YT01V00017R100 | SEAL; Incl 6(1), 7(1), 8(1), 10(1), 11(1), 15(1), 9(2), 13(2), Not Illustrated | 1 |
| 28 | YT01V00017R600 | SEAL KIT; Incl 18(1), 19(2), Not Illustrated | 1 |
| 29 | YT01V00030R300 | REPAIR KIT; Incl 6(1), 7(1), 8(1), 10(1), 11(1), 15(1), 18(1), 9(2), 13(2), 19(2), Not Illustrated | 1 |
| 30 | YT01V00034R400 | REPAIR KIT; Incl 1(1), 23(2), 24(2), Not Illustrated | 1 |
| 31 | YT01V00034R500 | ROD; Incl 2(1), 25(2), 26(2), Not Illustrated | 1 |
The cylinder body uses high-tensile seamless alloy steel for solid compression and anti-deformation performance. The piston rod is treated with induction hardening and hard chrome plating to resist wear and impact. Premium high-pressure seals prevent oil leakage, supporting stable operation at -20℃ to +85℃. All units pass strict leakage, fatigue and dimensional tests before delivery.
| Engineering Attribute | Verified Technical Data |
|---|---|
| Product Type | Kobelco SK75SR-3E Hydraulic Boom Cylinder |
| OEM Reference Number | YT01V00043F1 |
| Main Manufacturing Material | High strength seamless alloy steel |
| Surface Treatment of Piston Rod | Induction hardening + hard chrome plating |
| Sealing Material | Wear-resistant high pressure polyurethane seal |
| Applicable Working Temperature | -20℃ ~ +85℃ |
| Factory Inspection Items | Leakage test, fatigue test, dimension measurement |
This aftermarket cylinder delivers OEM-level performance at a competitive price. Optimized materials and structure adapt well to medium-load working conditions for longer service life. We accept single-piece orders and keep sufficient stock for fast delivery to minimize equipment downtime. The 12-month warranty covers non-artificial defects, with free replacement parts and professional technical support available.
Established in 2013, Belparts specializes in excavator hydraulic spare parts. We supply reliable aftermarket and OEM-matched components for mainstream brands including Kobelco, Hyundai, Komatsu
With standardized production and strict quality control, our products gain wide global recognition. We export goods to over 150 countries and regions, and provide complete cross-border logistics to meet diverse shipping demands.
